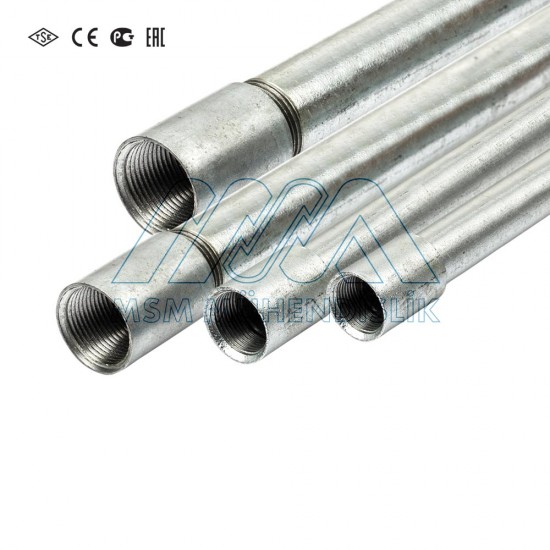

Galvanized Threaded Burr - Free Conduits With A Coupling (Middle Series)
- Product Code: GTC-G1
- Certified by TSE, GOST-R, EAC and CE.
- Manufactured in accordance with standard EN 10255.
- These conduits are hot-dip galvanized coated.
- Galvanized coating meets the requirements of standard EN 10240.
- Burr-free inner surface minimizes the risks of scratching the cable while wire pulling.
- ±5% tolerance of all below-mentioned physical characteristics.
- Standard length 6.00 m, has a coupling on one end.
- Due to production process specifics the minimum order is 5 tons (of one size).
- Especially used in construction of non-residential and industrial facilities, workplaces, ships etc. Suitable for indoor and outdoor use and in wet conditions.
| Product Code | Thread Size | Nominal Diameter (ID x OD - mm) | Nominal Wall Thickness (mm | Manufaturer's Code | Weight (lenght/kg) | Quantity per Bundle (pcs) | Bundle Weight (bundle/kg) |
| GTC-G1 | 1/2" | 16,1 x 21,3 | 2,65 | 1,23 | 7,38 | 10 | 73,80 |
| GTC-G2 | 3/4" | 21,7 x 26,9 | 2,65 | 1,59 | 9,54 | 10 | 95,40 |
| GTC-G3 | 1" | 27,3 x 33,7 | 3,25 | 2,46 | 14,76 | 5 | 73,80 |
| GTC-G4 | 1 1/4" | 36,0 x 42,4 | 3,25 | 3,17 | 19,02 | 5 | 95,10 |
| GTC-G5 | 1 1/2" | 41,9 x 48,3 | 3,25 | 3,65 | 21,90 | 4 | 87,60 |
| GTC-G6 | 2" | 53,1 x 60,3 | 3,65 | 5,17 | 31,02 | 3 | 93,00 |
| GTC-G7 | 2 1/2" | 68,9 x 76,1 | 3,65 | 6,63 | 39,78 | 2 | 79,56 |
| GTC-G8 | 3" | 80,9 x 88,9 | 4,05 | 8,64 | 51,84 | 1 | 51,84 |
| GTC-G9 | 4" | 105,3 x 114,3 | 4,50 | 12,40 | 74,40 | 1 | 74,40 |
| GTC-G10 | 5" | 129,7 x 139,7 | 4,85 | 16,70 | 100,20 | 1 | 100,20 |
| GTC-G11 | 6" | 155,4 x 165,1 | 4,85 | 19,80 | 118,80 | 1 | 118,80 |
