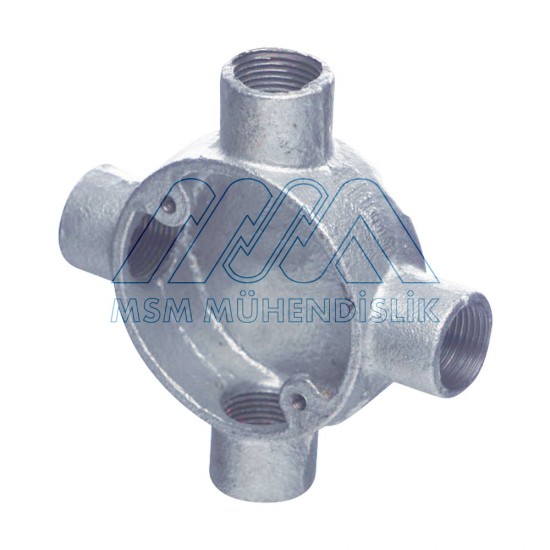

Intersection Box (X Type)
- Product Code: MB-311.G1
- Hot-dip galvanized coated on malleable iron.
- Used in interconnect of BS 31 type conduits and cable connection.
NOTE: See page 31 for gasket, cover and extension elements of C and X type junction boxes.
| Product Code | Manufacturer's Code | Thread Size | Int. Dimension (mm) (diameter x depth) |
| MB-311.G1 | B-BC0575 | 3/4" | Ø60 x 25 |
| MB-312.G2 | B-BC0510 | 1" | Ø60 x 28 |
| MB-313.G3 | B-BC0512 | 1 1/4" | Ø80 x 40 |
