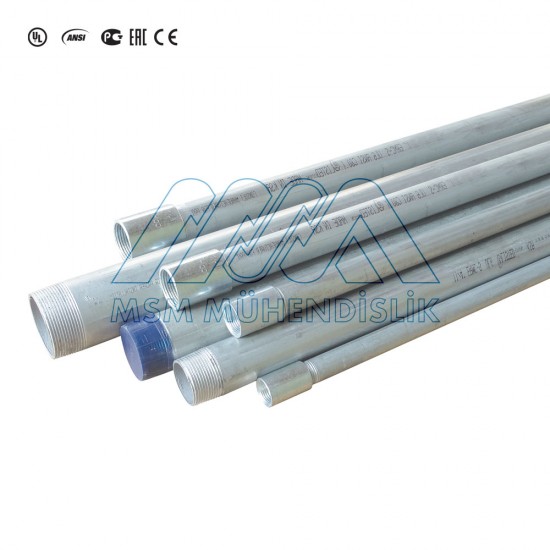

RSC Galvanized Steel Threaded Rigid Conduits / Hot-Dip Galvanized
- Product Code: RSC-301.H
- Certified by UL 6 and ANSI C80.1, GOST-R, EAC and CE.
- Burr-free electrical installation conduits.
- Hot-dip galvanized coating characterized.
- ±5% tolerance of all below mentioned physical characteristics.
- Standard product length 3.05 m, has a coupling on one end.
- Especially used in construction of heavy industry facilities (steel and concrete plants), refineries, power plants, facilities with explosion-proof installations. Suitable for underground, outdoor and indoor use.
| Product Code | Manufaturer's Code | Thread Size | Nominal Diameter (ID x OD - mm) | Nominal Wall Thickness (mm | Weight (m/kg) | Weight (lenght/kg) | Quantity per Bundle | Bundle Weight (bundle/kg) |
| RSC-301.H | C-R00050 | 1/2" | 16,06 x 21,34 | 2,64 | 1,17 | 3,58 | 10 | 35,80 |
| RSC-302.H | C-R00075 | 3/4" | 21,33 x 26,67 | 2,72 | 1,56 | 4,76 | 8 | 38,08 |
| RSC-303.H | C-R00100 | 1" | 27,00 x 33,40 | 3,20 | 2,28 | 6,94 | 5 | 34,70 |
| RSC-304.H | C-R00125 | 1 1/4" | 35,40 x 42,16 | 3,38 | 2,99 | 9,12 | 3 | 27,36 |
| RSC-305.H | C-R00150 | 1 1/2" | 41,24 x 48,26 | 3,51 | 3,70 | 11,29 | 3 | 33,87 |
| RSC-306.H | C-R00200 | 2" | 52,91 x 60,33 | 3,71 | 4,94 | 15,06 | 3 | 45,18 |
| RSC-307.H | C-R00250 | 2 1/2" | 63,23 x 73,03 | 4,90 | 7,84 | 23,90 | 2 | 47,80 |
| RSC-308.H | C-R00300 | 3" | 78,48 x 88,90 | 5,21 | 10,15 | 30,96 | 2 | 61,92 |
| RSC-309.H | C-R00400 | 4" | 102,86 x 114,30 | 5,72 | 14,46 | 44,10 | 1 | 44,10 |
| RSC-310.H | C-R00500 | 5" | 128,86 x 141,30 | 6,20 | 19,54 | 59,59 | 1 | 59,59 |
| RSC-311.H | C-R00600 | 6" | 154,76 x 168,26 | 6,75 | 25,96 | 79,17 | 1 | 79,17 |
