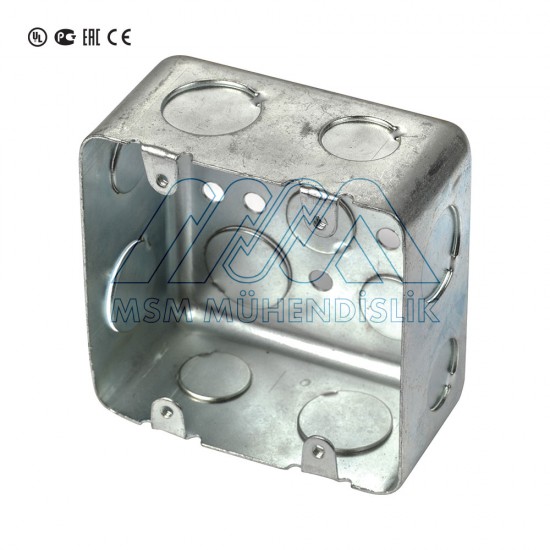

Square Junction Box / 102x102x54 mm
- Product Code: MG-753.1
- Certified by UL, GOST-R, EAC and CE.
- Made of pre-galvanized metal sheet.
- The depth and the walls can be extended using an extension ring.
- Standard metal sheet thickness min. 1.0 mm, max. 1.6 mm.
- Used in EMT / IMC conduits installation over plaster.
The depth of such junction boxes can be extended with the extension pieces on the page 13.
| Product Code | Manufacturer’s Code | Side Knockouts Number x Size | Bottom Knockouts Number x Size |
| MG-753.1 | 52171 - 1/2" | 12 x 1/2" | 5 x 1/2" |
| MG-753.2 | 52171 - 3/4" | 8 x 3/4" | 3 x 1/2" + 2 x 3/4" |
| MG-753.3 | 52171 - 1/2"&3/4" | 8 x 1/2" + 4 x 3/4" | 3 x 1/2" + 2 x 3/4" |
| MG-753.4 | 52171 - 1" | 8 x 1" | 3 x 1/2" + 2 x 3/4" |
