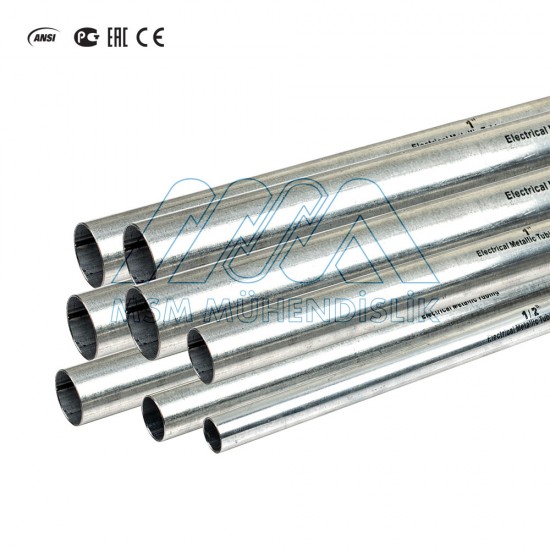

EMT Galvanized Threadless Steel Conduits / Pre-Galvanized Coating / Standard Type
- Product Code: EMT-101
- Certified by ANSI C80.3, GOST-R, CE.
- Burr-free electrical installation conduits.
- Standard product length 3.00 m.
- Pre-galvanized coating and bendable.
- ±5% tolerance of all below-mentioned physical characteristics.
- Especially used in construction of social buildings, business centers, workshops and high-rise buildings.
| Product Code | Manufaturer's Code | Size | Nominal Diameter (ID x OD - mm) | Nominal Wall Thickness (mm | Weight (m/kg) | Weight (lenght/kg) | Quantity per Bundle | Bundle Weight (bundle/kg) |
| EMT-101 | EMT-050P | 1/2" | 15,79 x 17,93 | 1,07 | 0,44 | 1,32 | 10 | 13,20 |
| EMT-102 | EMT-075P | 3/4" | 20,92 x 23,42 | 1,25 | 0,68 | 2,04 | 10 | 20,40 |
| EMT-103 | EMT-100P | 1" | 26,64 x 29,54 | 1,45 | 1,00 | 3,00 | 10 | 30,00 |
| EMT-104 | EMT-125P | 1 1/4" | 35,05 x 38,35 | 1,65 | 1,49 | 4,46 | 5 | 22,35 |
| EMT-105 | EMT-150P | 1 1/2" | 40,90 x 44,20 | 1,65 | 1,73 | 5,18 | 5 | 25,95 |
| EMT-106 | EMT-200P | 2" | 52,50 x 55,80 | 1,65 | 2,20 | 6,60 | 3 | 19,80 |
| EMT-107 | EMT-250P | 2 1/2" | 69,37 x 73,03 | 1,83 | 3,07 | 9,22 | 3 | 27,66 |
| EMT-108 | EMT-300P | 3" | 85,24 x 88,90 | 1,83 | 3,87 | 11,60 | 2 | 23,20 |
| EMT-109 | EMT-400P | 4" | 110,10 x 114,30 | 2,11 | 5,81 | 17,43 | 2 | 35,00 |
